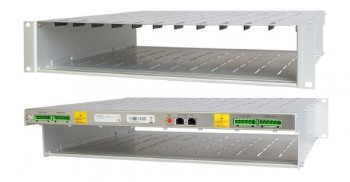

The frame can be installed into the standard 19” rack.
HDX002 features:
- Integrated power and management buses
- Power backup in one frame or power backup between frames
- Frame address selection at the rear panel (rotary switch)
- Several frames can be connected together via HDO management bus
- Receiver back up functionality (slots 1-2, 3-4, …)
| Parameter | Specification |
|---|---|
| General | |
| Number of module places | 12 pcs. |
| Power consumption | 0 W |
| Management bus connector | 2 pcs RJ-45 socket |
| Power bus connector | 4 pcs 6-pin socket |
| Height | 2 RU (88,9 mm) |
| Width | 19″ (485 mm) |
| Depth | 440 mm |
| Weight | 2.0 kg |
| EMC compliance | EN 50083-2 |
| Operating temperature range | 0…+45 °C |
| Storage temperature range | -20…+60 °C |
| Operating relative humidity | 0…85 % |
